CATALOG

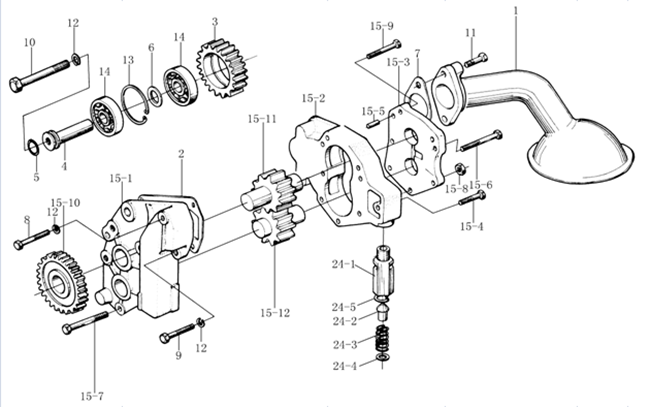

WD615 OIL PUMP
26
Th11
Th11
| NO. | Part No. | Part Name | Quantity |
| 1 | VG1800070051 | Suction pipe | 1 |
| 2 | VG14070055 | Gasket | 1 |
| 3 | VG14070061 | Idler gear | 1 |
| 4 | VG14070056 | Axle | 1 |
| 5 | VG14070155 | O-ring | 1 |
| 6 | VG14070049 | Ring | 1 |
| 7 | VG14070078 | Joint | 1 |
| 8 | 190003800551 | Screw | 1 |
| 9 | 190003802527 | Screw | 1 |
| 10 | 190003802578 | Screw | 1 |
| 11 | 190003802523 | Screw | 2 |
| 12 | 190003931122 | Washer | 2 |
| 13 | 190003934732 | Circlip | 1 |
| 14 | 190003311410 | Ball bearing | 2 |
| 15 | VG1500070021 | Oil pump | 1 |
| 1/15 | VG1500070029 | Front cover | 1 |
| 2/15 | VG1500070015 | Housing | 1 |
| 3/15 | VG1500070024 | Rear cover | 1 |
| 4/15 | 190003800530 | Screw | 1 |
| 5/15 | 190003901420 | Pin | 4 |
| 6/15 | 190003800566 | Screw | 4 |
| 7/15 | 190003800579 | Screw | 1 |
| 8/15 | 190003871303 | Nut | 1 |
| 9/15 | Q218B1070 | Screw | 1 |
| 10/15 | VG14070060 | Gear | 1 |
| 11/15 | VG1500070020 | Gear pair | 1 |
| 24 | VG1560070099 | Release valve C | 1 |
| 1/24 | VG1500070098 | Valve body | 1 |
| 2/24 | VG14070130 | Valve cone | 1 |
| 3/24 | VG14070131 | Valve spring | 1 |
| 4/24 | VG681270027 | Washer | 1 |
| 5/24 | VG9003920029 | Split pin | 1 |
