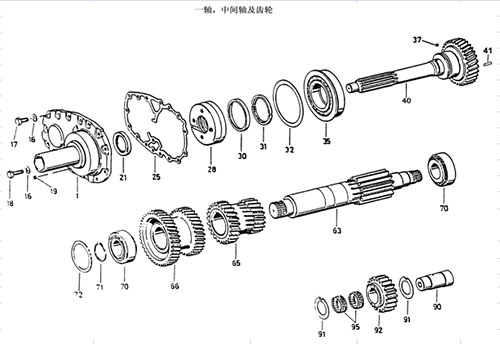

5S-150GP INOUTSHAFT,LAYSHAFT AND WHEELS
26
Th11
Th11
| NO. | Part No. | Part Name | Quantity |
| 1 | 2159302003 | Cover | 1 |
| 1/A | 2159302007 | Cover | 1 |
| 17 | 636015110 | Srew | 15 |
| 18 | 636015120 | Screw | 1 |
| 19 | 630361065 | Plug | 1 |
| 21 | 734310111 | Shaft seal | 1 |
| 25 | 1269302161 | Gasket | 1 |
| 28 | 1269202104 | Pump | 1 |
| 30 | 730061890 | Locking ring | 1 |
| 31 | 769145010 | Spilt ring | 1 |
| 32 | 0769140002(s) | Shim (optional,clearance-0.00-0.10) | 1 |
| 35 | 7217 | Roller bearig | 1 |
| 37 | 635470012 | cylinoriacl roller | 1 |
| 40 | 2159302006 | Input shaft | 1 |
| 40/A | 2159302046 | Input shaft | 1 |
| 41 | 730061892 | Tube | 1 |
| 63 | 1292303004 | Lay shaft | 1 |
| 65 | 2159303002 | Gear 1-2 gear | 1 |
| 66 | 2159303003 | Double gear | 1 |
| 70 | 735370011 | Roller bearig | 1 |
| 71 | 769144033 | Locking ring | 1 |
| 72 | 1269140004 | Spacer disc | 1 |
| 90 | 1269305003 | Reverse idler shaft | 1 |
| 91 | 730150064 | Spacer disc | 2 |
| 92 | 1292305002 | Reverse idler gear | 1 |
| 95 | 735320492 | Needle roller bearing | 2 |
